Spot-On GreenLiner X2 Cross Line Laser Level Set - (Promotion item only)
|
|
| Cross, Line & Spot Lasers |
|
| Price: |
£99.95 excl VAT
£119.94 incl VAT |
|
|
| Delivery: |
FREE - UK Mainland |
|
|
| Availability: |
Promotion item. Only available with FRE205GWS & SRL200GWS Rotary Laser GroundWorks Combo Sets. |
|
| Manufacturer: |
Spot-On |
|
New Spot-On GreenLiner X2 Cross Line Laser Level. A top professional self-levelling cross line laser level with ultra bright Osram 10mW green laser diodes.
Accuracy ±3mm/10m
Range 20m (60m with a receiver)

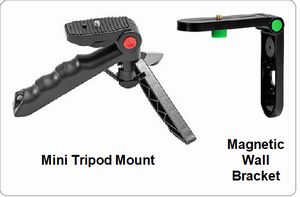

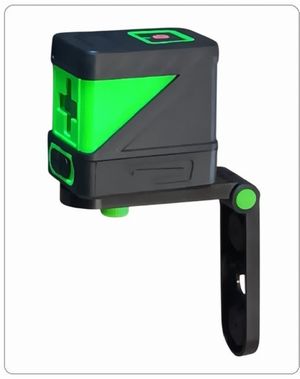

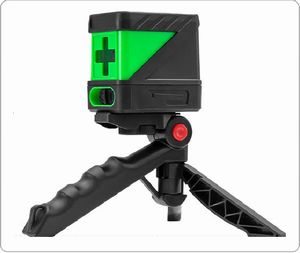

Set complete with Mini Tripod Mount and Magnetic Wall Bracket.
Applications:
Projects highly visible cross lines onto the wall, floor and ceiling surfaces.
Recommended for interior horizontal and vertical levelling and alignment applications for carpentry, plumbing and tiling jobs. electrical, lighting, suspended ceilings and kitchen installations.
Pulse Function:
For distance and outdoor levelling the unit is equipped with a high-frequency (10kHz) pulse mode which can be used with the Fukuda FD9G Line Laser Receiver, (not included) to detect the pulsating laser lines up to 60m under most light conditions.
Green Laser Technology
The distance over which a laser is visible to the eye depends on the colour or the wavelength of the laser beam.
This has to do with the physiology of the human eye – green appears brighter to us than red.
Depending on the ambient light condition, therefore, green lasers are many times more visible than red ones.
This allows applications on dark grounds, over longer distances and in very bright ambient light conditions.
|
|
Main Features: Spot-On GreenLiner X2 Cross Line Laser Level Set - (Promotion item only) |
|
 |

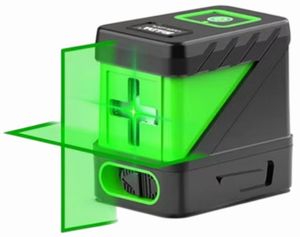

Self-levelling green cross-line laser level.
|
|
|
|
Horizontal and 1 vertical line to form a green laser cross.
|
|
|
|
Projects extremely highly visible 90° wide angle horizontal and vertical green laser lines.
|
|
|
|
Self-levelling function can be switched off for manual use to project inclined laser lines.
|
|
|
|
Distance or exterior use with optional receiver.
|
|
|
|
Quick set-up and easy to operate,
|
|
|
|
Heavy-duty shockproof construction with rubberised housing.
|
|
|
|
Visual alarm, flashes when out of level.
|
|
|
|
On/off compensator transit lock.
|
|
|
|
Level base with 1/4in socket for camera tripod or laserslide accessories.
|
|
|
|
Laser set supplied with batteries, mini tripod mount and magnetic wall bracket, instructions and soft case. |
|
|
|
Technical Specification: Spot-On GreenLiner X2 Cross Line Laser Level Set - (Promotion item only) |
|
|
Working range radius |
>20m without receiver (subject to ambient light conditions)
|
|
|
60m with receiver (not included)
|
|
Accuracy |
±3mm/10m
|
|
Self-levelling range |
±4°
|
|
Line thickness |
1mm at 5m
|
|
Line brightness |
3-stage variable
|
|
Horizontal line offset |
45mm above base
|
|
|
140mm with mini tripod
|
|
Sensor |
magnetically damped pendulum compensator with transit lock
|
|
Laser diode |
515nm <10mW
|
|
Output power |
<1mW Class 2
|
|
Power supply |
2 x 1.5v AA Alkaline Batteries (included)
|
|
Operating time |
8hrs (with both lines continuous)
|
|
Protection |
IP54 (dust/water)
|
|
Temperature range |
-20°C to +60°C
|
|

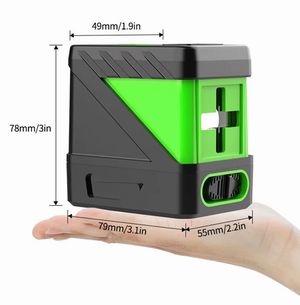

Size |
79 x 55 x 78mm (laser only)
|
|
|
135 x 93 x 73mm (carton)
|
|
Weight |
225g (Laser only w/batteris)
|
|
|
455g (Set in carton)
|
|
Product Ref |
SGLX2 |
|
| Price: |
|
£99.95 plus VAT (if applicable) |
|
|
|
| Manufacturer: |
Spot-On |
|
|
|
 |
|
|
