Fukuda FRE301R Rotary Laser Level Horizontal Vertical Plumb & Dual Grade HVP/DG Ext Set - (Replaced by upgraded FRE302G)
|
|
| X.Products |
|
| Price: |
£399.95 excl VAT
£479.94 incl VAT |
|
|
| Delivery: |
FREE - UK Mainland |
|
|
| Availability: |
Sorry! Item discontimued. Suggest Fukuda FRE302G @ £399.95 +VAT as an alternative. |
|
| Manufacturer: |
Fukuda Laser |
|
Alternative
Replaced by upgraded FRE302G HVP/DG Green Rotary Laser as an alternative. Please click here
________________________________________________
Fukuda Laser FRE301R Rotary Laser Exterior Set with electronic HVP/DG (horizontal-vetical-plumb-dual grade) red rotary laser level.
Accuracy ±1.5mm/10m
Working range Ø 30m / 400m with receiver (included)
Slope range#±4°/±7% X/Y or X+Y
Set complete with NiMH rechargeable battery pack & charger, receiver and remote control all contained for safe storage in a portable hard carry case.
Special Offer:
Only 1 available. Save £100.00 incl VAT. (original price £499.95 incl VAT, now £399.98 incl VAT). Price includes P&P and 1 years warranty for this ex re-con set.
Applications
Recommended for building site levelling jobs: seting-out, slopes, groundworks also lanscaping and surveying over a 400m area.
Features

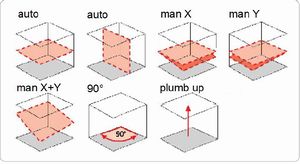

Automatic horizontal and vertical levelling, dual grade X/Y slope setting, incline plane scanning, 90° layout and plumb point positioning.
Includes anti-drift, anti vibration and antiwind functions. |
|
Main Features: Fukuda FRE301R Rotary Laser Level Horizontal Vertical Plumb & Dual Grade HVP/DG Ext Set - (Replaced by upgraded FRE302G) |
|
 |

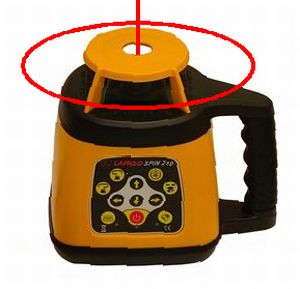

Fully automatic, self-levelling horizontal and vertical laser beams.
|
|
|
|

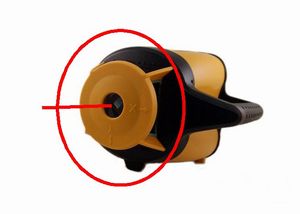

Permanent plumb beam.
|
|
|
|
90° layout operation.
|
|
|
|
Manual slope function.
|
|
|
|
Three rotating speeds.
|
|
|
|
Four scanning angles.
|
|
|
|
Clockwise and anti-clockwise rotation.
|
|
|
|
Fast levelling with temperature-stable electronic sensors
|
|
|
|
Audio and visual alarm when out of level.
|
|
|
|
Compensator transit lock.
|
|
|
|
5/8in sockets on base for tripod, laserslide (pole) or wall mount.
|
|
|
|
Low power indication.
|
|
|
|

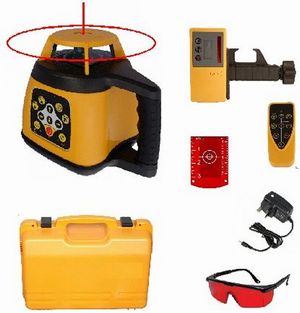

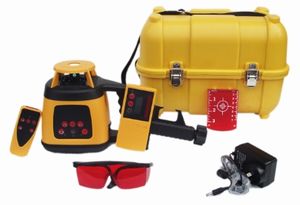

Laser complete receiver & clamp, remote control, magnetic target, laser enhancement glasses, rechargeable batteries & charger, padded hard carry case plus instructions.
|
|
|
|
Set colours may vary. |
|
|
|
Technical Specification: Fukuda FRE301R Rotary Laser Level Horizontal Vertical Plumb & Dual Grade HVP/DG Ext Set - (Replaced by upgraded FRE302G) |
|
|
Working range |
20m Ø without receiver (subject to ambient light conditions)
|
|
|
400m Ø with receiver (included)
|
|
Accuracy |
±1.5mm/10m
|
|
Self levelling range |
±5° horizontal & vertical
|
|
Operation |
automatic (self-levelling)
|
|
|
manual (slope setting)
|
|
Rotation |
clockwise & anti-clockwise
|
|
Drift system |
automatic
|
|
Rotation speed |
0, 120, 300, 600rpm
|
|
Scanning angles |
0°, 10°, 45°, 90°, 180°
|
|
Slope range |
±4°/±7% X/Y or X+Y
|
|
Remote control range |
20m exterior/30m interior
|
|
Sensor |
electronic levelling system
|
|
Laser diode |
635nm <5mW
|
|
Output power |
<1mW Class 2
|
|
Temperature range |
-20°C to +50°C
|
|
Protection |
IP66 (dust/water)
|
|
Power supply |
4 x 1.5v NiMH rechargeable batteries
|
|
Operating time |
20hrs continuous
|
|
Mount sockets |
5/8in on base and back (mount)
|
|
Dimensions |
150 x 128 x 161mm
|
|
Weight |
1.5kgs (laser only)
|
|
|
4.0kgs (set)
|
|
Fukuda Laser No |
FRE301R |
|
| Price: |
|
£399.95 plus VAT (if applicable) |
|
|
|
| Manufacturer: |
Fukuda Laser |
|
|
|
 |
|
|
Fukuda FRE301R Rotary Laser Level Horizontal Vertical Plumb & Dual Grade HVP/DG Ext Set - (Replaced by upgraded FRE302G)
from Laser Level's Online Shop |
|
|
|
|
 |
|
